1.1 Release notes, SDT 7.6
Major modifications for current release
-
New title, general reorganisation and major improvement of the documentation
- New format of graphics and figures with improved style sheets
- New section 4 on general sensors and actuators definition
- New section 5 on methods for meshing plates with piezoelectric patches (including automated methods)
- New section 6 on model reduction and I/O state-space models with emphasis on
-
State-space models with imposed displacement/acceleration/voltage
- State-space models construction from Craig-Bampton reduced models (also for imposed voltage)
- General reorganisation and addition of numerous scripts to illustrate all concepts presented in the new sections, in particular related to the construction of state-space models (total of 28 tutorial scripts).
- Direct links to scripts for given steps of tutorial scripts in the documentation.
- All tutorial scripts are integrated in the d_piezo('tuto') interactive tool.
A total of 28 tutorial scripts are included in this documentation. The simplest way to run the tutorials is to open the gui environment:
d_piezo('tuto');
Each tutorial can be expanded using the '+' on the left. The green arrows allow to run each step of the script and access that part of the script in the Matlab editor. The white arrows allows to only see the script.

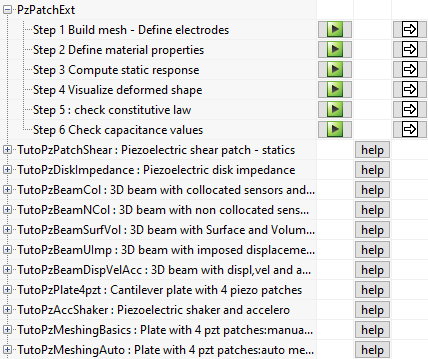

| Figure 1.1: gui interface to run tutorials |
d_piezo('Scriptname') is used to run a specific tutorial script in command line.
d_piezo('Scriptname-sn') allows to specify the step, where n is the step number.
d_piezo('tutopzpatchext-s1')
will run the first step of the demo script in section 3.5.1.
