hbmui

SDT-nlsim Contents Functions

hbmui

Purpose

Graphical user interface for the HBM solver (requires SDT)

Syntax

hbmui

Description

hbmui operates the GUI for HBM simulation procedures including pre, post treatment and simulation runs.

Commands

Hide

Not do display the GUI while running the HBM module.
hbmui('hide');

By default the GUI gets opened when the module is first loaded. Use this as the first call to the module to prevent the GUI from appearing. The GUI will remain hidden until an explicit call to hbmui is performed.

Init[,Project,Post,...]

Initializes the GUI and specific tabs. If the tab already exists, the display will be switched to the existing data.

hbmui init
hbmui initProject

The following command options are supported

-Reset To reset the full GUI before the asked initialization.
-resetCurTab To reset the tab specified for initialization.
-noTab To initialize tab data without actually displaying it.

PARAM[.Tab,UI]

Access to GUI parameter values.
RO=hbmui('PARAM.'Tab')'

The output is a struct RO with fields corresponding to the parameter names in the tab Tab, and values interpreted from the current GUI state. By default an error will be issued if the mentioned tab has not been initialized. The following command options are supported

-safe Not to generate an error if the tab has not been initialized, but rather return the default values.
-r1j To recover the parameter underlying java object.
.Par To recover parameter named Par only.

Command PARAMUI returns the complete application UI structure.

Set[Project,Post,...]

Script version of GUI parameters sets.
hbmui('setTab', struct('Par' ,�'Val,...));.

Tab is the tab name containing the parameter to set, Par is the parameter name, Val is the value assigned to the parameter. To recover parameters names, see hbmui PARAM.

To trigger an action linked to a push button, the value do must be assigned, e.g.
hbmui('setPost',struct('refresh','do'));

Tabs

Project

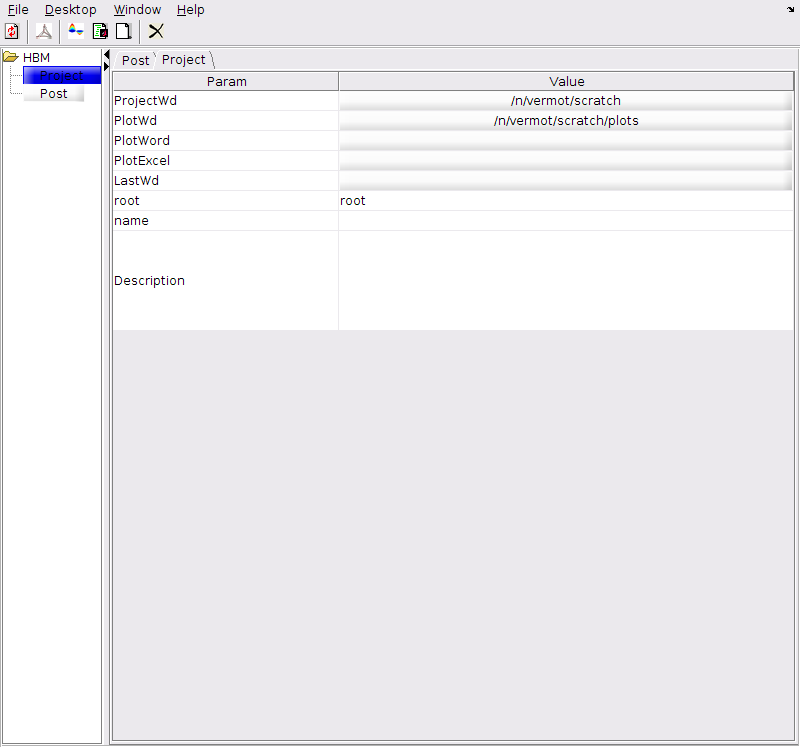

Figure 4.1: Project tab in initial state

Post

The Post tab handles post-treatment procedures allowing data export and display. In display mode it is linked to an HBM result object whose state can be altered through the GUI. To be used results must have been stored in the application.

The initial Post tab is presented figure 4.2,

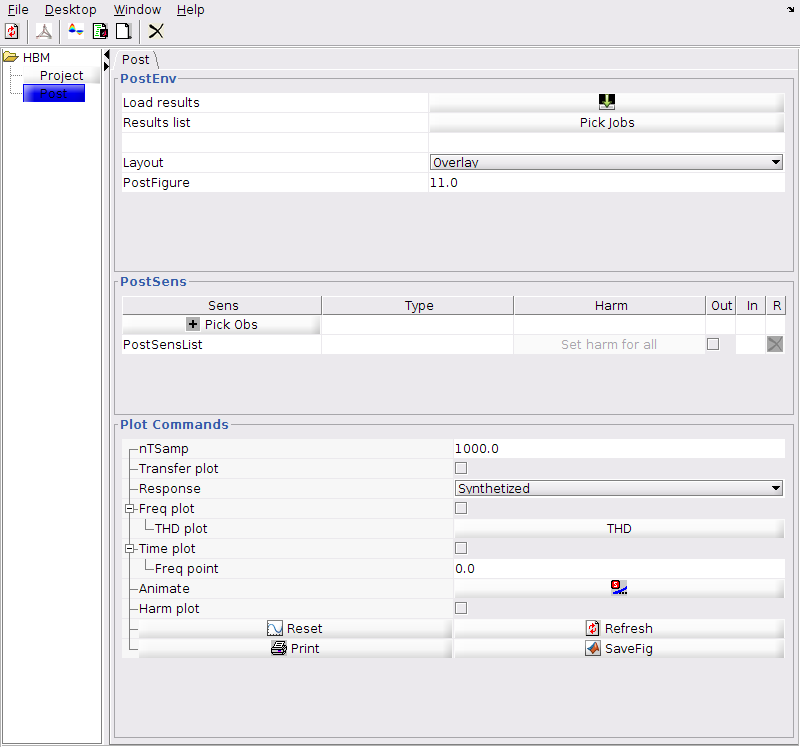

Figure 4.2: Post tab in initial state

It features three sections

PostEnv Handles the post-treatment environment, namely the selected job, with the possibility to load one, the iiplot figure number to host display.
PostSens Handles the observation stack, PostSensList. The first two lines allow handling the following ones that correspond to the actual observations. The first line proposes an interactive definition of a new post-treatment, see hbmui PostDlgSensPick. The second one is header to the list, with the possibility to apply changes to all following list entries regarding harmonic selection Set harm for all, selection toggle or full observation list deletion. The table features 5 columns
- Sens Provides the observation set label.
- Type Provides the type of signal, either disp, vel or acc for respectively a displacement, velocity, or acceleration signal.
- Harm Provides the harmonics retained for the post-treatment. The input will be treated as a subset of the job output harmonics. It can set either as a comma separated integer list, or a token (all, even, odd being supported).
- Out To toggle enabling of the current observation. If unchecked the observation list will be ignored in the post-treatments.
- In To select the current line as an entry for transfer displays. A maximum of one observation line can be selected as an input.
- R To suppress the corresponding observation line.
Post Commands Drives the display options and commands. The following parameters can be set (presented in the format Tab.Par)
- Post.RespSyn The type of synthesis to be performed, either Synthesized to synthesize the response on observation with all retained harmonics, byHarm to generate an observation response per harmonic, or byShape to generate an observation response per time shape.
- Post.nTSamp Provides the number of time samples for transient displays.
- Post.FreqPlot To select a maximum amplitude response as function of the frequency plot.
- Post.TimePlot To select a transient response plot at a given frequency.
- Post.FreqPoint To provide a frequency point associated to the transient response plot.
- Post.HarmPlot To select a harmonic contribution bar graph at a given frequency.
- Post.TransferPlot To generate a transfer response between two observations.
The following commands can be launched
- Post.PlotReset To reset the iiplot figure with the current setup.
- Post.PlotRefresh To refresh the display with the current setup.
- Post.PlotPrint To print the the display into a plot, support for automatic reporting is provided through the Porject tab setup.
- Post.PlotSaveFig To save a figure containing the current display.
- Post.TimeAnim To animate the transient response associated to the current setup.

PostDlgSensPick

The SensPick dialog box provides tools for an interactive definition of observations based on jobs stored in the application. When clicking on the PickObs button in the PostSens section of the hbmui Post tab, the dialog box presented in figure 4.3 opens.

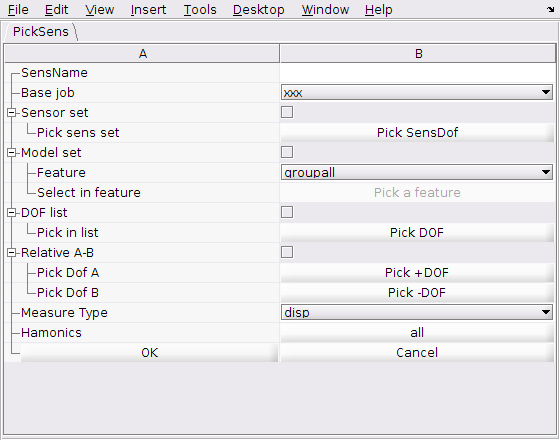

Figure 4.3: Observation selection/generation dialog

One then gets the possibility to define an observation with the following options

SensName A string defining the observation name that will be used as label in displays.
BaseJob The job result with which the observation will be generated, used as context in the dialog following options.
The type of observation, to be checked in the list presented below. The choice is exclusive and will expand the adequate options.
- Sensor set To use a SensDof entry (see sdtweb sensors) that is present in the job model. Use the PickSensDof button to access the list of available entries and pick one.
- Model set To use an integrated model based element selection. The automated selection is based on usual model accessible information. On can use a feature (as type of information) between EltSet, Mat, Pro, or groupall. Use the Pick a feature button to access respectively the EltId set list, the MatId list or the ProId list declared on the model. The groupall feature directly selects all elements in the model and thus do not need further selection.
- DOF list To use a model DOF. The Pick DOF button then provides the complete list of available DOF for the user to pick one.
- Relative A-B To generate an observation based on a relative movement between two model DOFs, y=q₁ − q₂. Use the Pick +DOF to access the list of available DOF and select q₁. Use the Pick -DOF to access the list of available DOF and select q₂.
Measure Type To provide the type of signal to generate, either disp for displacement, vel for velocity, or acc for acceleration.
Harmonics To provide a sub-selection of harmonics retained for the post-treatment synthesis. Click on the button defaulted to all to access the list of available choices. Besides the list of harmonics present in the job result, one can choose all to retain all harmonics, odd to retain all odd harmonics only, or even to retain all even harmonics only.
OK To validate the input and proceed to the observation generation.
Cancel To cancel the current input and close the dialog.
