4.10  Computing/post-processing the response#

4.10.1  Simulate GUI#

Access to standard solvers is provided through the Simulate tab of the Model properties figure. Experienced users will typically use the command line equivalent to these tabs as detailed in the following sections.


Figure 4.12: Simulation properties tab.

4.10.2  Static responses#


The computation of the response to static loads is a typical problem. Once loads and boundary conditions are defined in a case as shown in previous sections, the static response may be computed using the fe_simul function.

This is an example of the 3D beam subjected to various type of loads (points, surface and volume loads) and clamped at its base:

 model=demosdt('demo ubeam vol'); % Initialize a test
 def=fe_simul('static',model');% Compute static response
 cf=feplot; cf.def=def;% post-process
 cf.sel={'Groupall','ColorDataStressMises'}

Low level calls may also be used. For this purpose it is generally simpler to create system matrices that incorporate the boundary conditions.

fe_c (for point loads) and fe_load (for distributed loads) can then be used to define unit loads (input shape matrix using SDT terminology). For example, a unit vertical input (DOF .02) on node 6 can be simply created by

  model=demosdt('demo2bay');  Case=fe_case(model,'gett'); %init
  % Compute point load
  b = fe_c(Case.DOF,[6.02],1)';

In many cases the static response can be computed using Static=kr \b. For very large models, you will prefer

   kd=ofact(k); Static = kd\b; ofact('clear',kd);

For repeated solutions with the same factored stiffness, you should build the factored stiffness kd=ofact(k) and then Static = kd \b as many times are needed. Note that fe_eig can return the stiffness that was used when computing modes (when using methods without DOF renumbering).

For models with rigid body modes or DOFs with no stiffness contribution (this happens when setting certain element properties to zero), the user interface function fe_reduc gives you the appropriate result in a more robust and yet computationally efficient manner

Static = fe_reduc('flex',m,k,mdof,b);

4.10.3  Normal modes (partial eigenvalue solution)#

fe_eig computes mass normalized normal modes.

The simple call def=fe_eig(model) should only be used for very small models (below 100 DOF). In other cases you will typically only want a partial solution. A typical call would have the form

 model = demosdt('demo ubeam plot');
 cf.def=fe_eig(model,[6 12 0]);  % 12 modes with method 6
 fecom('colordata stress mises')

You should read the fe_eig reference section to understand the qualities and limitations of the various algorithms for partial eigenvalue solutions.

You can also load normal modes computed using a finite element package (see section 4.3.2). If the finite element package does not provide mass normalized modes, but a diagonal matrix of generalized masses mu (also called modal masses). Mass normalized modeshapes will be obtained using

 ModeNorm = ModeIn * diag( diag(mu).^(-1/2) );

If a mass matrix is given, an alternative is to use mode = fe_norm(mode,m). When both mass and stiffness are given, a Ritz analysis for the complete problem is obtained using [mode,freq] = fe_norm(mode,m,k).

Note that loading modes with in ASCII format 8 digits is usually sufficient for good accuracy whereas the same precision is very often insufficient for model matrices (particularly the stiffness).

4.10.4  State space and other modal models#

A typical application of SDT is the creation of input/output models in the normal mode nor, state space ss or FRF xf form. (The SDT does not replicate existing functions for time response generation such as lsim of the Control Toolbox which creates time responses using a model in the state-space form).

The creation of such models combines two steps creation of a modal or enriched modal basis; building of input/output model given a set of inputs and outputs.

As detailed in section 4.10.3 a modal basis can be obtained with fe_eig or loaded from an external FEM package. Inputs and outputs are easily handled using case entries corresponding to loads (DofLoad, DofSet, FVol, FSurf) and sensors (SensDof).


Figure 4.13: Truss example.

For the two bay truss examples shown above, the following script defines a load as the relative force between nodes 1 and 3, and translation sensors at nodes 5 and 6

 model=demosdt('demo2bay');
 DEF=fe_eig(model,[2 5]);  % compute 5 modes

% Define loads and sensors Load=struct('DOF',[3.01;1.01],'def',[1;-1]); Case=fe_case('DofLoad','Relative load',Load, ... 'SensDof','Tip sensors',[5.01;6.02]);

% Compute FRF and display w=linspace(80,240,200)'; nor2xf(DEF,.01,Case,w,'hz iiplot "Main" -reset');

You can easily obtain velocity or acceleration responses using

 xf=nor2xf(DEF,.01,Case,w,'hz vel plot');
 xf=nor2xf(DEF,.01,Case,w,'hz acc plot');

Figure 4.14: FRF synthesis : with and without static correction.

As detailed in section 6.2.3, it is desirable to introduce a static correction for each input. fe2ss builds on fe_reduc to provide optimized solutions where you compute both modes and static corrections in a single call and return a state-space (or normal mode model) and associated reduction basis. Thus

 model=demosdt('demo ubeam sens -pro');

model=stack_set(model,'info','Freq',linspace(10,1e3,500)'); model=stack_set(model,'info','DefaultZeta',.01);

[SYS,T]=fe2ss('free 6 10',model); %ii_pof(eig(SYS.a),3)

qbode(SYS,linspace(10,1e3,1500)'2pi,'iiplot "Initial" -reset'); nor2xf(T,[.04],model,'hz iiplot "Damped" -po');

computes 10 modes using a full solution (Eigopt=[6 10 0]), appends the static response to the defined loads, and builds the state-space model corresponding to modal truncation with static correction (see section 6.2.3). Note that the load and sensor definitions where now added to the case in model since that case also contains boundary condition definitions which are needed in fe2ss.


The different functions using normal mode models support further model truncation. For example, to create a model retaining the first four modes, one can use

 model=demosdt('demo2bay');
 DEF=fe_eig(model,[2 12]);  % compute 12 modes
 Case=fe_case('DofLoad','Horizontal load',3.01, ...
              'SensDof','Tip sensors',[5.01;6.02]);
 SYS =nor2ss(DEF,.01,Case,1:4);
 ii_pof(eig(SYS.a)/2/pi,3)  % Frequency (Hz), damping

A static correction for the displacement contribution of truncated modes is automatically introduced in the form of a non-zero d term. When considering velocity outputs, the accuracy of this model can be improved using static correction modes instead of the d term. Static correction modes are added if a roll-off frequency fc is specified (this frequency should be a decade above the last retained mode and can be replaced by a set of frequencies)

 SYS =nor2ss(DEF,.01,Case,1:4,[2e3 .2]);
 ii_pof(eig(SYS.a)/2/pi,3,1)  % Frequency (Hz), damping

Note that nor2xf always introduces a static correction for both displacement and velocity.

For damping, you can use uniform modal damping (a single damping ration damp=.01 for example), non uniform modal damping (a damping ratio vector damp), non-proportional modal damping (square matrix ga), or hysteretic (complex DEF.data). This is illustrated in demo_fe.

4.10.5  Time computation#

To perform a full order model time integration, one needs to have a model, a load and a curve describing time evolution of the load.

 % define model and load
 model=fe_time('demo bar');fe_case(model,'info')
 % Define curves stack (time integration curve will be chosen later):
 % - step with ones from t=0 to t=1e-3, 0 after :
 model=fe_curve(model,'set','input','TestStep t1=1e-3');
 % - ramp from t=.1 to t=2 with final value 1.1;
 model=fe_curve(model,'set','ramp','TestRamp t0=.1 tf=2 Yf=1.1');
 % - Ricker curve from t=0 to t=1e-3 with max amplitude value 1:
 model=fe_curve(model,'set','ricker','TestRicker t0=0 dt=1e-3 A=1');
 % - Sinus (with evaluated string depending on t time vector) :
 model=fe_curve(model,'set','sinus',...
               'Test eval sin(2*pi*1000*t)');
 % - Another sinus definition, explicit curve (with time vector,
 %   it will be interpolated during the time integration if needed)
 model=fe_curve(model,'set','sinus2',...
     struct('X',linspace(0,100,10)',...
     'Y',sin(linspace(0,100,10)'))); % tabulated
 % - Have load named 'Point load 1' reference 'input'
 %   curve (one can choose any of the model stack
 %   curve from it stack entry name) :
 model=fe_case(model,'SetCurve','Point load 1','input');

cf=feplot(model) % plot the model

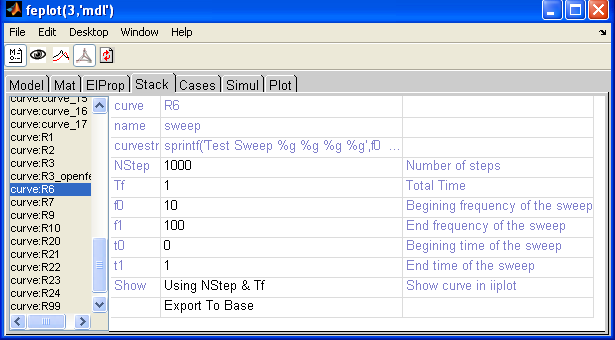

Once model is plotted in feplot one can edit each curve under the model properties Stack tab. Parameters can be modified. Curve can be plotted in iiplot using the Show pop-up button. One has to define the number of steps (NStep) and the total time to be displayed (Tf) and click Using NStep & Tf. One can also display curve on the info TimeOpt time options by clicking on Using TimeOpt.


Figure 4.15: GUI associated to a curve

One can change the curve associated to the load in the Case tab.

% Define time computation options : dt=1e-4, 100 time steps
cf.Stack{'info','TimeOpt'}=...
     fe_time('timeopt newmark .25 .5 0 1e-4 100');
% Compute and store/display in feplot :
cf.def=fe_time(cf.mdl);
figure;plot(cf.def.data,cf.def.def(cf.def.DOF==2.01,:)); % show 2.01 result

Time domain responses can also be obtained by inverse transform of frequency responses as illustrated in the following example

model=demosdt('demo ubeam sens');DEF=fe_eig(model,[5 10 1e3]);

w=linspace(0,600,6000)'; % define frequencies R1=nor2xf(DEF,.001,model,w,'hz struct'); % compute freq resp. R2=ii_mmif('ifft -struct',R1);R2.name='time'; % compute time resp. iiplot(R2);iicom(';sub 1 1 1 1 3;ylin'); % display

4.10.6  Manipulating large finite element models#

The flexibility given by the MATLAB language comes at a price for large finite element computations. The two main bottlenecks are model assembly and matrix inversion (static and modal computations).

During assembly compiled elements provided with OpenFEM allow much faster element matrix evaluations (since these steps are loop intensive they are hard to optimize in MATLAB). The sp_util.mex function alleviates element matrix assembly and large matrix manipulation problems (at the cost of doing some very dirty tricks like modifying input arguments).

Starting with SDT 6.1, model.Dbfile can be defined to let SDT know that the file can be used as a database. In particular optimized assembly calls (see  section 4.10.7) make use of this functionality. The database is a .mat file that uses the HDF5 format defined for MATLAB versions over 7.3.

For matrix inversion, the ofact object allows method selection. Currently the easiest to use solver (and default ofact method) is the multi-frontal sparse solver spfmex. For very large models it is recommended to use mklserv_utils (an implementation of IntelMKL Pardiso solver), the spfmex solver will perform perform poorly mainly because its current implementation is not parallelized. These solvers automatically perform equation reordering so this needs not be done elsewhere. They do not use the MATLAB memory stack which is more efficient for large problems but requires ofact('clear') calls to free memory associated with a given factor.

With other static solvers, that should be used only for very specific cases, (MATLAB lu or chol, or SDT true skyline sp_util method) you need to pay attention to equation renumbering. When assembling large models, fe_mk (obsolete compared to fe_mknl) will automatically renumber DOFs to minimize matrix bandwidth (for partial backward compatibility automatic renumbering is only done above 1000 DOF).

As SDT is an in-core oriented program, the real limitation on size is linked to performance drops when swapping. If the factored matrix size exceeds physical memory available to MATLAB in your computer, performance tends to decrease drastically. The model size at which this limit is found is very much model/computer dependent. It has to be noted that the most recent Linux distributions (Kernel versions 4.4 and above) handle swapping quite well for large amounts of memory.

Memory management can be optimized to some extent in SDT with dedicated preferences. There is a distinction between blockwise in-core operations, where an intensive operation is performed by blocks to avoid large memory duplication, and out-of-core operations where data is written on disc to unload RAM and intensive operations involve reading file buffers and writing results buffers to temporary files. The following SDT preferences are available (they should be set by sdtdef command)

  • BlasBufSize in GB, provides a block size for in-core operations, mainly matrix products with large bases, used by fe_eig, fe_norm, feutilb.
  • EigOOC in GB provides a global vector basis size to trigger out-of-core operations. If a vector basis size is estimated over the specified value, it will be written to disc, used by fe_eig, fe_reduc, fe_cyclic.
  • OutOfCoreBufferSize in MB provides a buffer size for out-of-core and file database operations. File database operations are common in FEMLink while handling results files. It is common not to load large files in memory. This buffer provides the amount of RAM that will still be used while in out-of-core mode, so this one should remain reasonable, and at least 10 times smaller than the EigOOC value.
  • KiKeMemSize in MB provides a buffer size for out-of-core matrix assemblies, this is mostly used when exploiting FEMLink results files with matrices.
  • MklServOOC a 1x2 line with [OOC_Mode MemSize(MB)]. Specific to the mklserv_utils solver with ofact allows specifying the out-of-core mode of the Pardiso solver and the associated memory threshold. OOC_Mode can take values 0 to force in-core, 2 to force out-of-core, and 1 to let the solver decide depending on MemSize. MemSize in MB is the total amount of RAM available for the solver, if the estimated factor size overcomes this value, the out-of-core mode is triggered. Beware that the solver will still need a fair amount of RAM to work, so that MemSize cannot be too small.
  • MklServBufSize in GB provides a right hand size block size for in-core resolution with the mklserv_utils solver. An optimum exists around 1 GB for reasonable workstations.

fe_eig, method 6 (IRA/Sorensen) uses low level BLAS code and thus tends to have the best memory performance for eigenvalue computations.

For batch computations (in nodesktop mode) you may want to run MATLAB with the -nojvm option turned on since it increases the memory addressable by MATLAB(version <=6.5).

For out-of-core operations (supported by fe_mk, upcom, nasread and other functions). SDT creates temporary files whose names are generated with nas2up('tempnameExt'). You may need to set sdtdef('tempdir','your_dir') to an appropriate location. The directory should be located on a local disk or a high speed disk array. If you have a RAID array or FLASH array, use a directory there.

4.10.7  Optimized assembly strategies#

The handling of large models, often requires careful sequencing of assembly operations. While fe_mknl, fe_load, and fe_case, can be used for user defined procedures, SDT operations typically use the an internal (closed source) assembly call to fe_case Assemble. Illustrations of most calls can be found in fe_simul.

[k,mdl,Case,Load]=fe_case(mdl,'assemble -matdes 1 NoT loadback',Case); return the stiffness without constraint elimination and evaluates loads.

[SE,Case,Load,Sens]=fe_case(mdl,'assemble -matdes 2 1 3 4 -SE NoTload Sens') returns desired matrices in SE.K, the associated case, load and sensors (as requested in the arguments).

Accepted command options for the assemble call are

  • -fetime forces the nominal assembly using mass, viscous damping and stiffness, output in this order: 2 3 1. If a reduced model is defined as an SE,MVR, the assembly is shortcut to output MVR as the assembled model, and MVR.Case as the Case. If the field .Case is absent, the case stacked in the base model is output.
  • -reset forces reassembly even if the .K field is defined and filled.
  • keep retains model.DOF even if some DOF are unused.
  • load requires load assembly and output.
  • sens requires sensor assembly and output.
  • GetT outputs a struct containing Case.Stack, Case.T and Case.DOF.
  • NoT is the usual option to prevent constraint elimination (computation of TTKT). With NoT DOFs are given in model.DOF or Case.mDOF. Without the option they are consistent with Case.DOF.
  • -MatDes specifies the list of desired matrices. Basic types are 2 for mass and 1 for stiffness, for a complete list see MatType.
    • -1 is used separate matrices associated with parameters (see upcom Par)
    • -1.1 removes the sub-parameters from the nominal matrix.
    • -2 is used to obtain matrices associated with assembled superelements with a split based on the matrix labels (.Klab) only. Matrices with common labels through SE are thus assembled together. With a model having only SE, all matrices found in all SE are assembled. When the model combines SE and standard elements, the non SE elements are integrated in the first matrix of each type. To avoid this behavior specify a matrix type 1, ... where all SE and non SE elements will be assembled, then followed by SE only matrices by labels. Note that this strategy only works with a single matrix type at a time. Possibly defined matrix coefficients with a p_super entry are not taken into account in the SE specific matrix types.
    • -2.1 performs the same task than -2 but accounting for p_super based SE matrix coefficients. As the main goal is to recover matrices for parametrization Zero coefficient are overridden to 1.
    • -2.2 performs the same task than -2 but strictly accounting for p_super based SE matrix coefficients. Matrices set to zero coefficient will thus be null in the assembly.
    • 5 (geometric stiffness) uses a predefined deformation stored as stack entry 'curve','StaticState'. Furthermore, the internal load is computed and added to returned loads.
  • InitFcn allows preemptive behavior at the beginning of assembly. ExitFcn does the same at exit.
  • -SE returns the assembled result as a superelement structure. One can use -SeCDof (superelement Case DOF) to fill .DOF field with constrained DOF (Case.DOF).
  • -RSeA : to be valid, SE should already be assembled (presence of fields .K, .Klab, .Opt, .DOF) but the option -RSeA allows to assemble on the fly not previously assembled SE.
  • -cell sets the first output as a cell array containing all assembled matrices.
  • -cfield keeps the Case.MatGraph to allow further reassembly.
